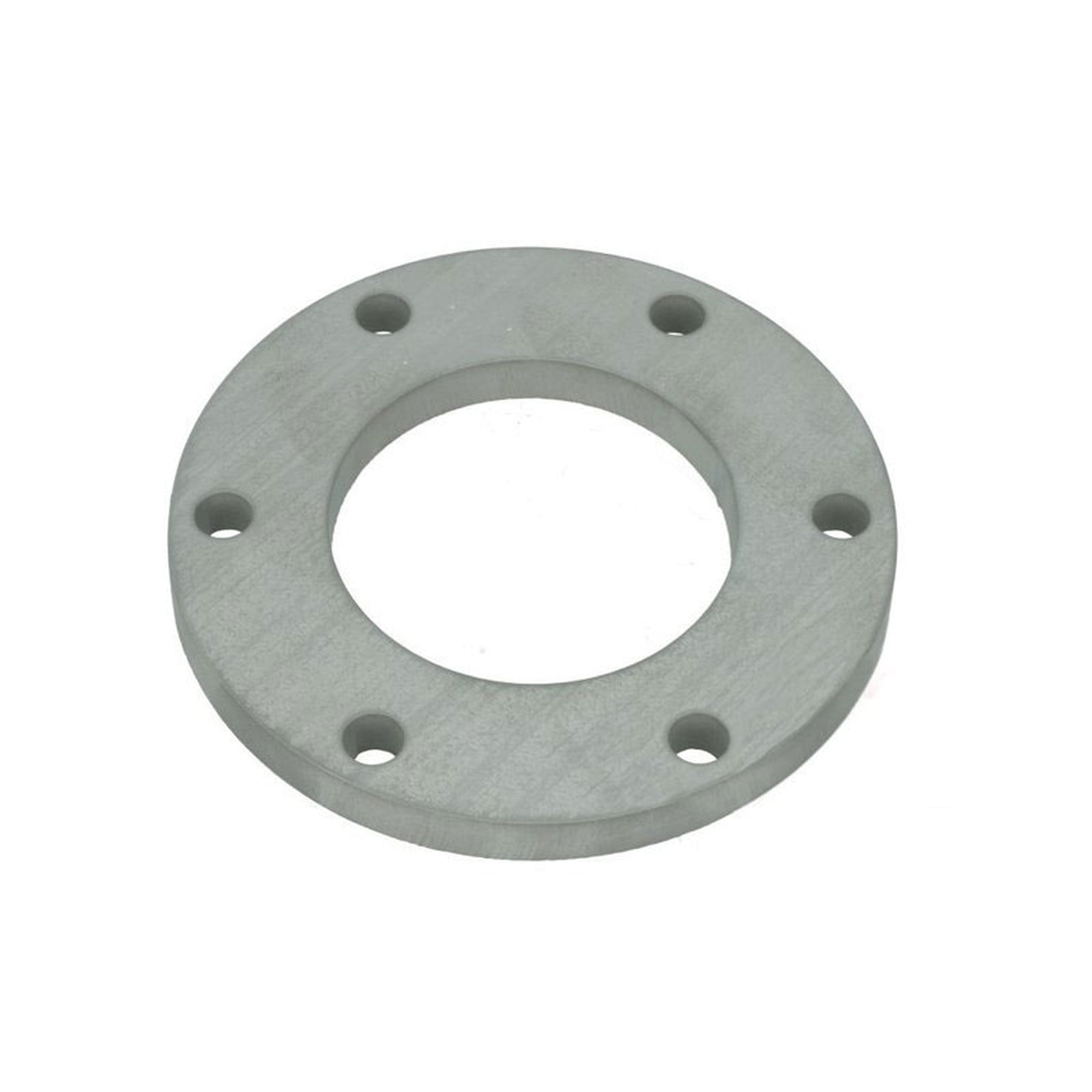

Downpipe Flange Holset Super HX40, 14cm²
This flange is used to fit the downpipe to the turbocharger, at the turbine outlet. All flanges are perfectly even and fit 100%. They are cut by water-jet or CNC milled to prevent warping.
Material: stainless steel
Material thickness: 10mm
Dimensions cut-out: 67mm
Hole distance: 101,6mm (diagonal)
Thread: for M10
Extras / Features: no threads! Holes 10,5mm!
For / Fits:
Holset Super HX40, 14cm²
If you are unsure whether the flange adapts to your turbocharger, get the dimensions here. If in doubt, you can make us a sketch of the exhaust side, we compare it for you!
