Wastegate TiAL MVS-A
De MVS-A 38mm wastegate is special ontworpen voor de motorsport die geen gebruik kunnen maken van de waterkoeling poorten zoals op de MV-S. De MVS-A heeft standaard een 38mm klep maar heeft ook vijf warmtevinnen die het gietstuk scheiden van de actuator. Deze wastegate kan de zwaarste omstandigheden aan en 100% van de tijd 100% prestaties leveren. Het is de keuze wastegate van veel WRC teams.
– High temp NiCrFe based alloy is used for valve and 347SS valve housing will offer longer product life compared to competing designs.
– High temperature silicone Nomex reinforced actuator diaphragm.
– 17-7 PH Stainless Steel actuator spring gives consistent pressure at high temperature, resist “relaxing” at temperature to 900F (483C).
– Nitronic 60 Stainless Steel is used for the valve seat, and valve bushing.
– All Stainless Steel hardware.
– Mating weld flanges are 304L

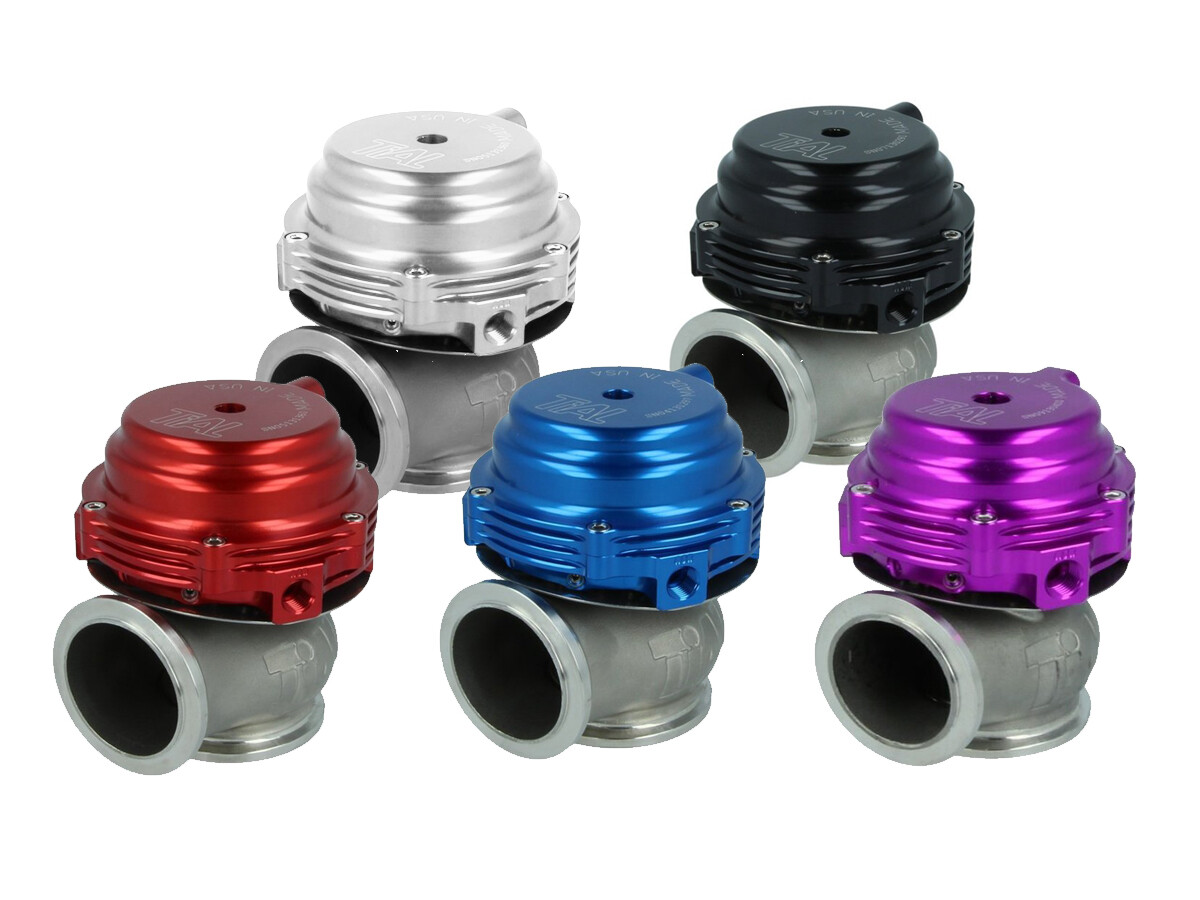

– Color anodized aluminum actuator (Silver, Red, Blue, Purple, Black).
– 3 lower ports and two top ports for easy install, no need to rotate the actuator top at all, plugs included for unused ports.
– V-Band inlet and outlet make install easy, flanges and clamps are in the box!
– Integrated -4 AN water cooling ports that cycle a small amount of coolant through the actuator top to keep the temperatures down in extreme conditions such as road racing. These are leak tested after installation from the factory and can be removed if not utilized.
– Five heat sinks raise the actuator top away from the casting to dissipate heat when water cooling can not be used
– Designed for Motorsport/Road Racing
De nieuwe Tial MV-S en de MV-R wastegate’s komen met alle bijhorende veren !
